JENBACHER 6 SERIES

Part # JGS616 & JGS620



1.7 to 03MW capacity,

Leanox control, original plc, high efficiency & performance,

Category:

Description

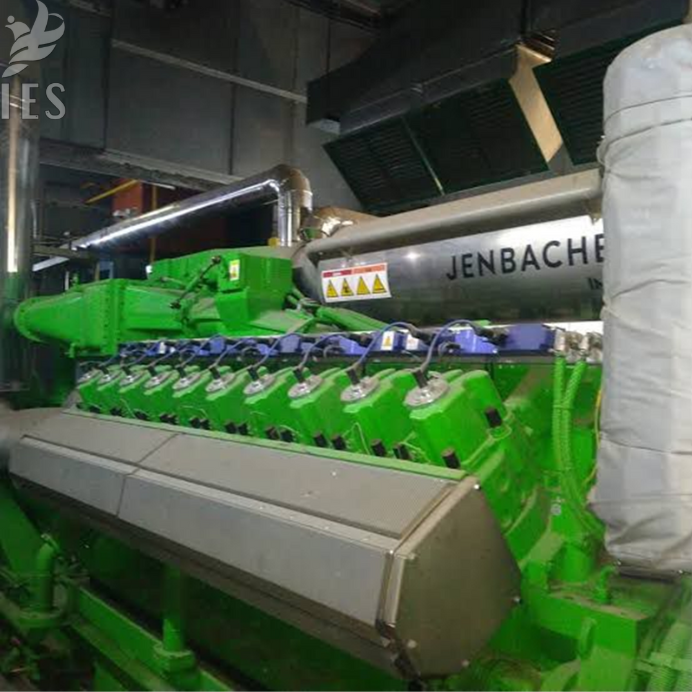

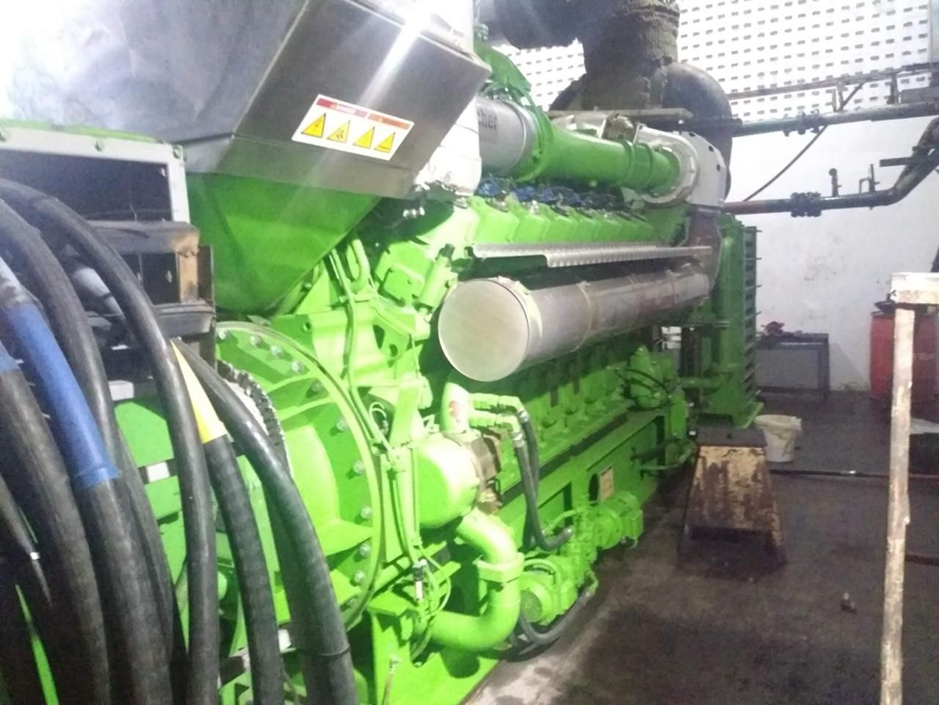

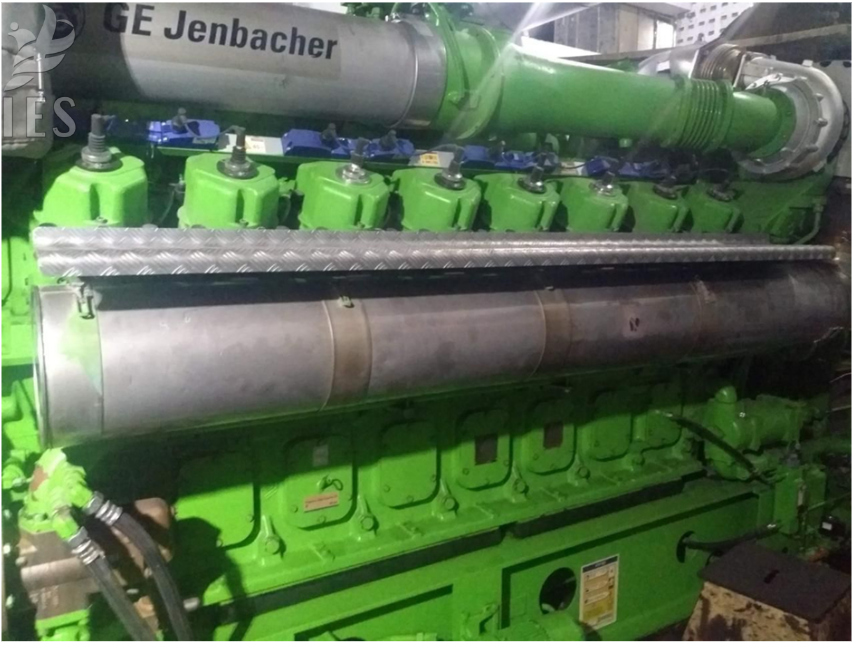

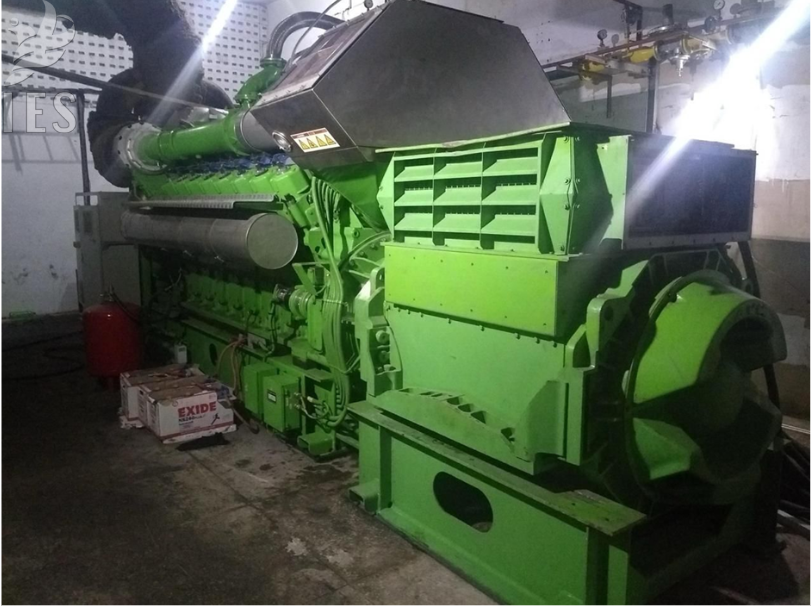

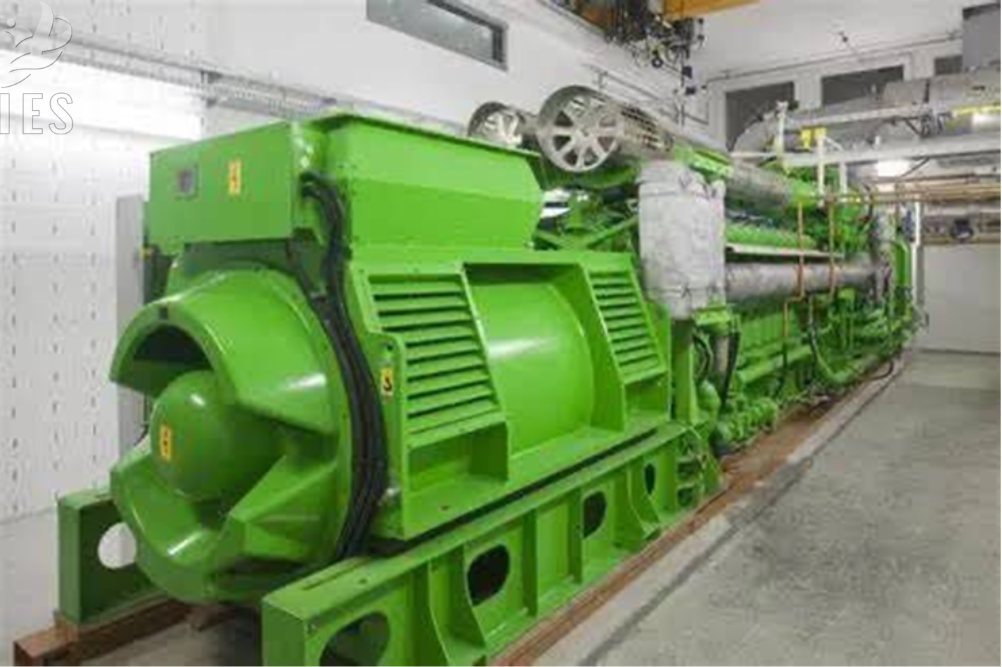

Jenbacher JGS616 & JGS620 – High-Efficiency Gas Gensets

The Jenbacher JGS616 and JGS620, part of the renowned Jenbacher 6 Series Gensets, are high-performance gas generator sets designed for industrial and commercial applications requiring robust, efficient power solutions. With electrical outputs ranging from 1.7 to 3 MW, these gensets deliver exceptional performance on natural gas, biogas, or other gaseous fuels, making them ideal for large-scale power generation. Engineered by INNIO Jenbacher, the Jenbacher 6 Series Gensets combine advanced technology with proven reliability, ensuring high efficiency and low emissions.

Learn more about Jenbacher Gas Engines

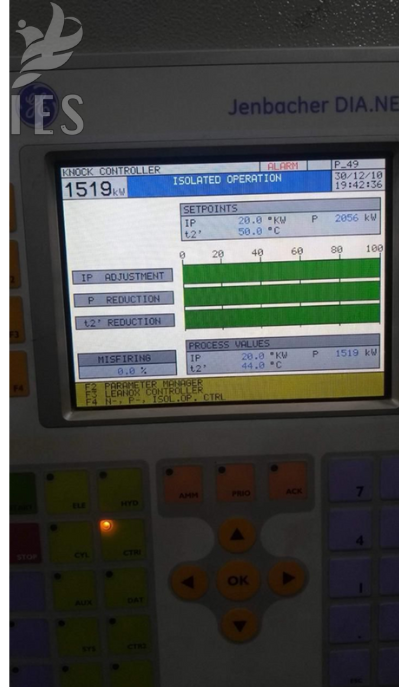

The JGS616 offers up to 2.7 MW, while the JGS620 provides up to 2.8 MW, with electrical efficiencies of up to 45.4% and total CHP efficiencies exceeding 90%. Equipped with the LEANOX® lean burn control system, these gensets achieve low NOx emissions (≤250 mg/Nm³ at 5% O2), supporting sustainable operations. The DIA.NE XT4 PLC control system ensures precise monitoring, seamless operation, and remote data access, enhancing reliability and ease of maintenance for the Jenbacher 6 Series Gensets.

Designed for durability, the JGS616 and JGS620 feature a 60,000-hour service life and a compact design (e.g., JGS620: L: 10,900 mm x W: 2,200 mm x H: 2,800 mm). Their fuel flexibility supports biogas, landfill gas, and sewage gas, making them versatile for CHP systems, industrial power, and renewable energy projects. The Jenbacher 6 Series Gensets are trusted globally, with thousands deployed for their high power density and low installation costs.

Applications include data centers, manufacturing, and district heating, where the Jenbacher 6 Series Gensets excel in delivering cost-effective, eco-friendly power. With robust construction, advanced cooling, and customizable BOP options, the JGS616 and JGS620 ensure maximum uptime and efficiency. Contact INNIO Jenbacher for tailored solutions with the Jenbacher 6 Series Gensets.
