JENBACHER 4 SERIES -JGS420

Part # JGS420



1500Kw capacity Leanox control, original control system, easy to maintenance, high performance & efficiency

Category:

Description

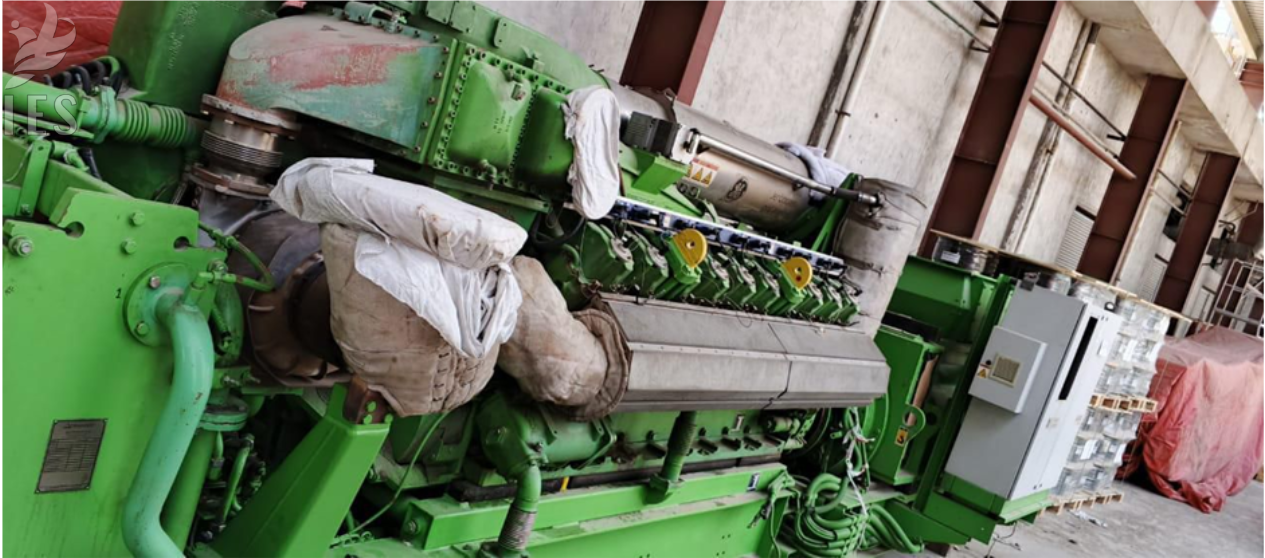

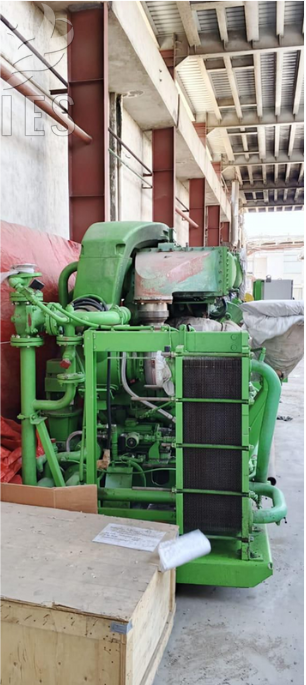

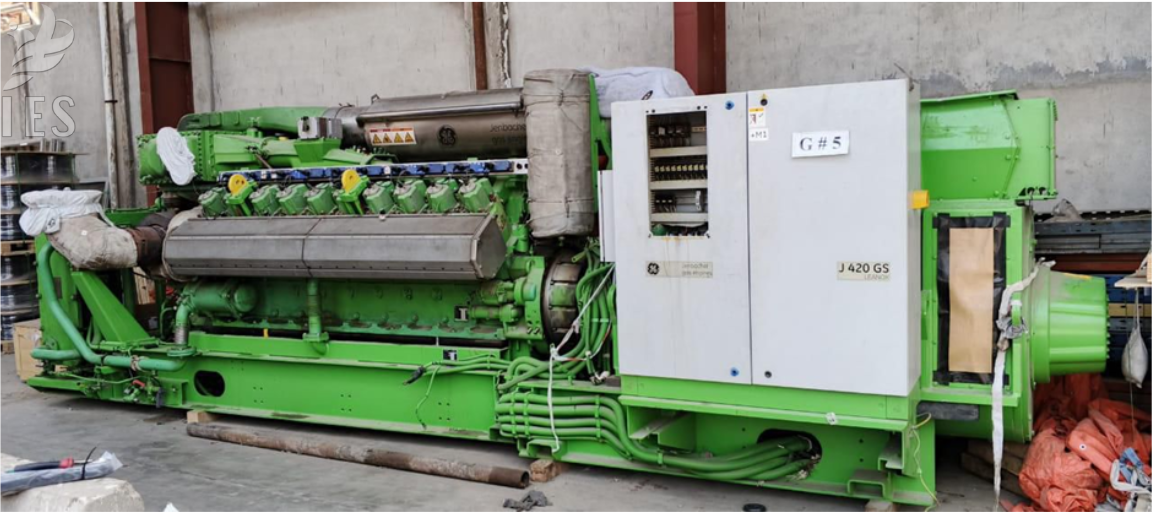

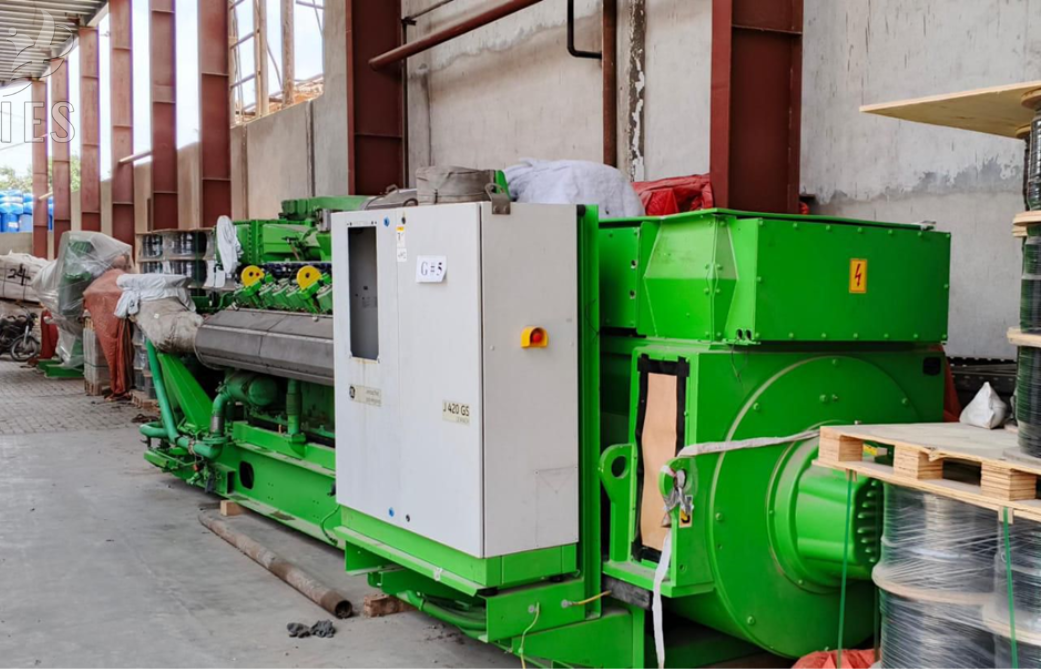

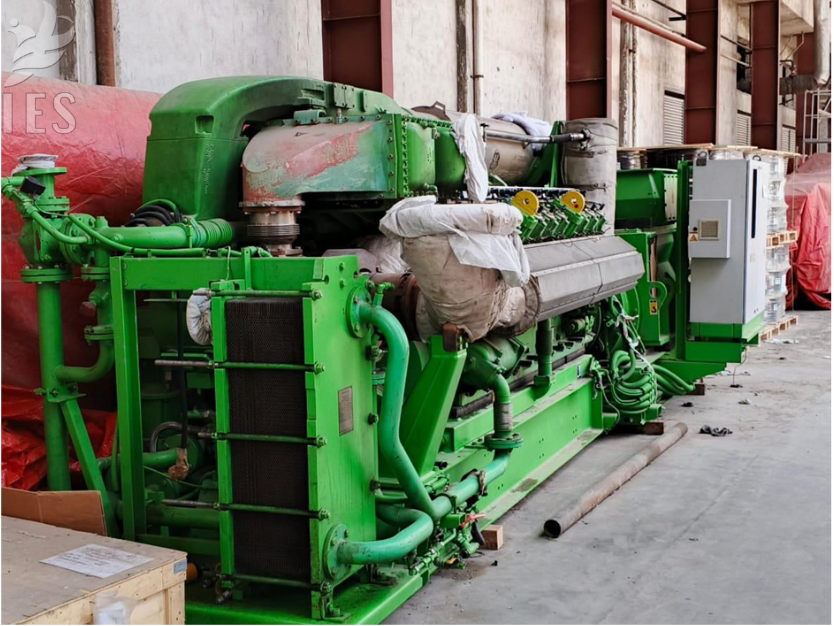

Jenbacher JGS420 – 1500kW Gas Genset with LEANOX Control

The Jenbacher JGS420, a flagship model of the Jenbacher 4 Series Gensets, is a high-performance gas generator set designed for industrial and utility applications. Delivering 1501 kW of electrical output, this genset operates on natural gas or biogas, offering exceptional efficiency and reliability. Engineered with Jenbacher’s proven Type 4 platform, the JGS420 combines advanced technology with sustainability, making it ideal for power-intensive operations worldwide. Learn more about Jenbacher Gas Engines.

Key Features of Jenbacher 4 Series Gensets

The JGS420 achieves an electrical efficiency of 42.4% and a thermal efficiency of 45.4%, ensuring up to 88.3% overall efficiency in CHP applications. Its LEANOX® control system minimizes NOx emissions (≤500 mg/Nm³ at 5% O2), supporting eco-friendly power generation. The DIA.NE XT4 control system provides precise monitoring and remote data transfer, enhancing operational reliability.

With a compact design (L: 7,100 mm x W: 1,900 mm x H: 2,200 mm), the JGS420 ensures easy maintenance with a service interval of up to 80,000 hours. It supports diverse fuels like biogas, landfill gas, and sewage gas, making the Jenbacher 4 Series Gensets versatile for industrial power, CHP, and renewable energy projects. The genset’s robust construction and high-power turbocharger ensure durability across varied conditions.

Applications and Benefits

The Jenbacher JGS420 excels in industrial power generation, CHP systems, biogas projects, and remote power solutions. Its fuel flexibility, low emissions, and high efficiency reduce costs and environmental impact. With over 6,400 Type 4 engines deployed globally, the Jenbacher 4 Series Gensets are trusted for reliability and performance.

Technical Specifications: 1501 kW output, 356 Nm³/hour fuel consumption, V20-cylinder engine, 1500 rpm, and 400V-10.5kV voltage. For sustainable, cost-effective power, the Jenbacher JGS420 is the ultimate choice. Contact INNIO Jenbacher for details.
